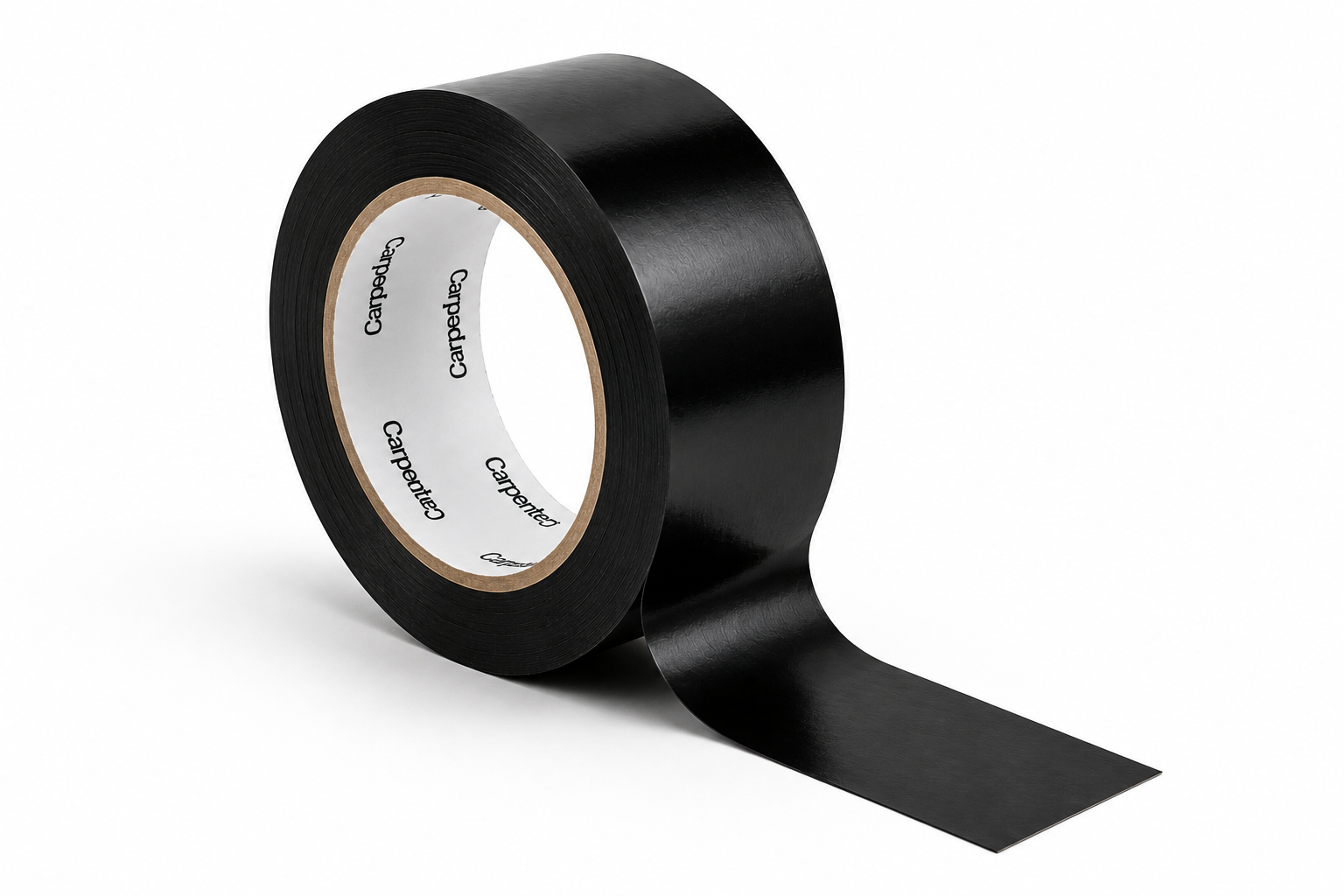

PVC Electrical Insulation Tape
Safe Insulation. Strong Protection. Reliable Performance.
Carpenter, a brand of Micron Adhesives Pvt Ltd, Hyderabad, manufactures and supplies premium PVC Electrical Insulation Tape across India. Our insulation tapes are used by electricians, panel builders, automotive wiring harness manufacturers, and electrical contractors for insulating, protecting, and colour-coding electrical wires and connections.
Our PVC insulation tapes are manufactured to meet IS 13585 standards with high dielectric strength, flame retardancy, and consistent adhesion — ensuring safe, reliable insulation in residential, commercial, and industrial electrical applications.
Electrical Insulation
Provides dependable insulation for electrical wiring and cable joints.
Flame Retardant
Manufactured using premium PVC film with excellent safety performance.
Moisture Resistant
Performs reliably in humid and demanding environments.
Flexible & Easy to Apply
Conforms easily around cables, wires and connectors.
What is PVC Electrical Insulation Tape?
PVC Electrical Insulation Tape is a pressure-sensitive tape made from a flexible, flame-retardant PVC (Polyvinyl Chloride) film coated with a rubber-based adhesive. It is designed to insulate electrical wires, prevent current leakage, and protect connections from moisture, abrasion, and corrosion.
Carpenter PVC insulation tapes comply with IS 13585 (Indian Standard) for performance requirements including dielectric strength (minimum 4kV), flame retardancy (self-extinguishing within 60 seconds), and elongation at break (minimum 150%). Available in 10 standard colours for wire colour-coding applications.
Features of Carpenter PVC Electrical Insulation Tape
Flame Retardant
Self-extinguishing within 60 seconds as per IS 13585.
High Dielectric Strength
Minimum 4kV (Standard Grade) with 5kV grade available.
Flexible PVC Backing
Easily conforms to wire contours without cracking.
Temperature Resistance
Standard grade: -10°C to 80°C. Heat-rated grade: up to 105°C.
Resistant to Moisture, Oil & Mild Chemicals
Designed for long-lasting insulation in demanding environments.
Available in 10 Colours
Red, Blue, Black, Yellow, Green, White, Orange, Brown, Grey and Violet.
Backing Thickness
Available in 0.12mm and 0.18mm.
Strong Rubber-Based Adhesive
Provides strong, consistent bonding performance.
UV Stabilised
Suitable for outdoor panels and junction box applications.
High Elongation
Elongation at break greater than 150%.
Technical Specifications
Standard specifications of Carpenter PVC Electrical Insulation Tape. Custom widths are available on request.
| Material | Flame-retardant PVC Film |
|---|---|
| Adhesive | Rubber-based PSA |
| Thickness | 0.12mm – 0.18mm |
| Width | 12mm, 19mm, 25mm (Standard), Custom Widths Available |
| Roll Length | 10m, 20m (Retail), 100m+ (Bulk / Jumbo Rolls) |
| Dielectric Strength | Minimum 4kV (Standard) |
| Flame Rating | Self-extinguishing, IS 13585 Compliant |
| Temperature Rating | -10°C to 80°C |
| Colours | Black, Red, Blue, Yellow, Green, White, Orange, Brown, Grey & Violet |
Applications & Common Uses
Carpenter PVC Electrical Insulation Tape is trusted across residential, commercial and industrial electrical applications.
Residential & Commercial Wiring
Electrical wiring insulation for residential and commercial buildings.
Automotive Wiring
Wiring harness insulation and bundling.
Electrical Panels
Electrical panel and switchboard wiring.
Cable Joint & Splice Insulation
Reliable insulation for cable joints and splices.
Industrial Control Panels
Colour-coding of wires in industrial control panels.
Outdoor Electrical Connections
Protects wire connections in damp and outdoor environments.
Transformers & Motors
Transformer and motor winding protection.
Looking for PVC Electrical Insulation Tape in India?
Carpenter manufactures pvc electrical insulation tape in custom widths and lengths for wholesale and industrial supply across India.
